T8 3F 14W LED tube AC mains/ECG compatible
T8 3F 14W LED tube AC mains/ECG compatible

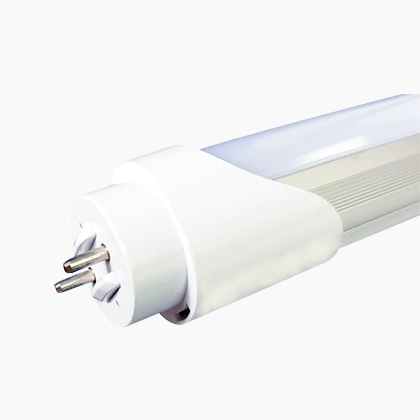

Product Model: ECGall T8 3F LED tube
Features
T8 LED lights replacement for T8 3F 30W fluorescent tube.
All compatible T8 LED tube solutions. Just plug & play installation. Electronic ballast, magnetic ballast and mains power input compatibility. No ballast bypassing. No fixture rewiring.
(Model: ECGall T8 3F LED tube)
Compatible with Electronic Control Gear (ECG)
Compatible with Magnetic ballast
Compatible with Mains voltage (100V ~ 240V)
Directly retrofit conventional T8 900mm fluorescent tube
Over 30,000 hour life time
Good Color rendering index Ra ≥ 82
No discoloration of light over life of tube
Mercury-free and RoHS compliant
Suitable for operation at low temperature
No bending or warping thanks to good quality aluminum housing.
Please note: Only suitable for working with double ended input mains voltage. (mains L and N need to connect with different end of LED tube)
We are a professional T8 LED lighting manufacturer and supplier in Taiwan. If you are looking for retrofit LED lighting, we are the factory and exporter to offer best quality and service.
Specifications
| Descriptions | Value |
| Direct Replacement Target | T8 30W traditional fluorescent tube |
| Compatibility | Magnetic ballast, Electronic ballast, mains input ( 100V ~ 240V) direct DC power supply (141-338V) |
| Driving Voltage | CCG, ECG operation: Upon ballast output Mains operation: 100V ~ 240V DC power supply: 141-338V |
| Life Span(Hours) | ECG operation: 50000 hours Mains operation: 30000 hours |
| Wattage | 9W |
| Conventional Wattage Equivalent | 30W |
| Base Cap | G13 |
| Color Rendering Index (CRI) Ra | >82 |
| Beam Angle(Degrees) | 180 |
| Color Temperature(CCT) | 2700K~6500K |
| Life Span(Hours) | 50000 hours |
| Lumens per Watt | 130 lm/W |
| Lumens | 1170 lm |
| Dimeter | 28mm |
| Length | 900mm |
| PC cover | Clear/Milky |
| End cap type | Aluminum or plastic |
