VBDC T5 LED Tubes Get on the Train

VBDC T5 LED Tubes Get on the Train

VBDC T5 LED Tubes Get on the Train

2024-05-23

A large number of high requirements apply to railway technology products such as requirements for fire protection, shock and vibration, temperature range, and electromagnetic compatibility.

BENSON ENERGY SAVING TECHNOLOGY completed the railway lighting products of the BEST VBDC Rail T5 LED tube. Conformity with a large number of high requirements apply to railway technology lighting products including EN45545 R4 fire protection, EN61373 shock and vibration, and EN61000-6-4 & EN50121-3-2 electromagnetic compatibility.

The BEST VBDC Rail T5 LED tube is known for its zero-flicker feature and offers a full range of tube sizes to cater to customer preferences or T5 lamp fixtures, including 136mm, 212mm, 288mm, 517mm, 849mm, 1149mm, and 1449mm. The colour temperature can be optional, such as 3000K, 4000K, 5000K, 6000K, 6500K. Additionally, various safety features have been incorporated into the T5 LED bulbs design, including fuse protection, over-current protection, over-temperature protection, shock voltage protection, etc.

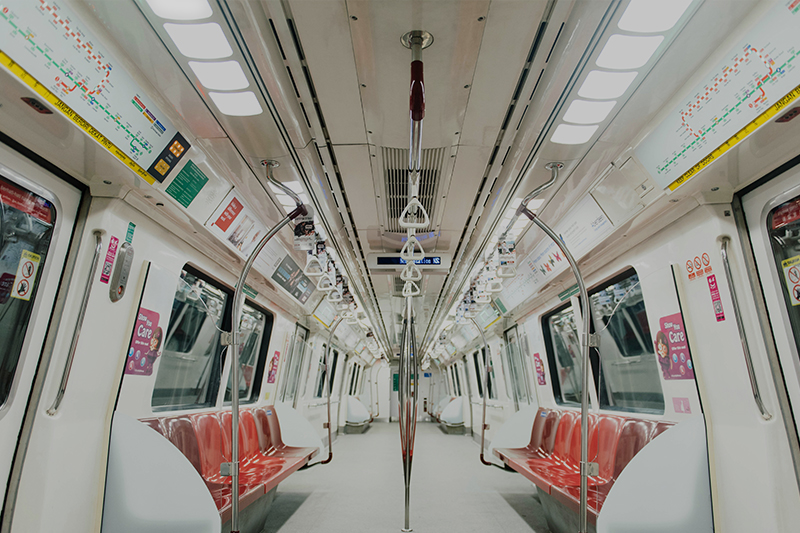

The VBDC train tube LED are approved for use in trains and directly replace the regular fluorescent light tubes. Refitting easily

The VBDC train tube LED are approved for use in trains and directly replace the regular fluorescent light tubes. Refitting easily.

  • VBDC Rail T5 LED:

To make sure LED lighting operates smoothly, the high voltage of DC must be stepped down by a converter to match the operating DC voltage operating range of the BEST VBDC rail T5 LED tube, from 24V to 110V DC. Meanwhile, these tubes can be compatible with rail vehicles DC/DC converters or vehicle batteries or generators.

  • Benefits:
  • Compatible wide range of DC voltages from 24V-110V
  • Great T5 LED retrofit for train
  • Reuse the T5 lamp fixture along with its G5 socket
  • Adaptation in 24VDC battery power
  • >50,000hrs Long lifespan of LED Tube
  • Half aluminum case and half PC cover, providing efficient heat dissipation
  • Significant savings can be achieved in labour costs and free maintenance costs
  • More resistant to vibration and shocks than fluorescent tubes, translating to fewer breakages and replacements
  • Zero mercury content, environmentally friendly
  • Flicker free lighting with instant start

  • Guaranteed Quality: Lifespan >50,000hrs
  • The T5 rail LED lamp
  • EN61000-6-4 Electromagnetic compatibility (EMC)
  • EN61373 Rolling stock equipment. Shock and vibration
  • EN45545 R4 Fire protection on railway vehicles
  • EN50155 Electronic equipment used on rolling stock
  • EN50121-3-2 Rolling stock equipment. Electromagnetic compatibility
  • RoHS Restriction of Hazardous Substances

  • Specification:
Model Watt Lumen efficacy Driving Voltage
VBDC T5 LED-Train Tube 136mm 4W >120lm/W 24V…110V DC
VBDC T5 LED-Train Tube 212mm 4W
VBDC T5 LED-Train Tube 288mm 5W
VBDC T5 LED-Train Tube 517mm 7W
VBDC T5 LED-Train Tube 549mm 10W
VBDC T5 LED-Train Tube 849mm 14W
VBDC T5 LED-Train Tube 1149mm 18W
VBDC T5 LED-Train Tube 1449mm 21W

  • Applications:

BEST VBDC T5 LED-Train tube is designed for railway vehicles interior use, providing general illumination or ambient lighting with an IP rating is 20. These tubes can be compatible with rail vehicles DC/DC converters or vehicle batteries or generators.

These t5 led tubes can be used for main lights, door lights, toilet lights, cabin lights, ceiling systems, or emergency lighting.

You can download our datasheet from here

Contact us today! All certificates available on request.
