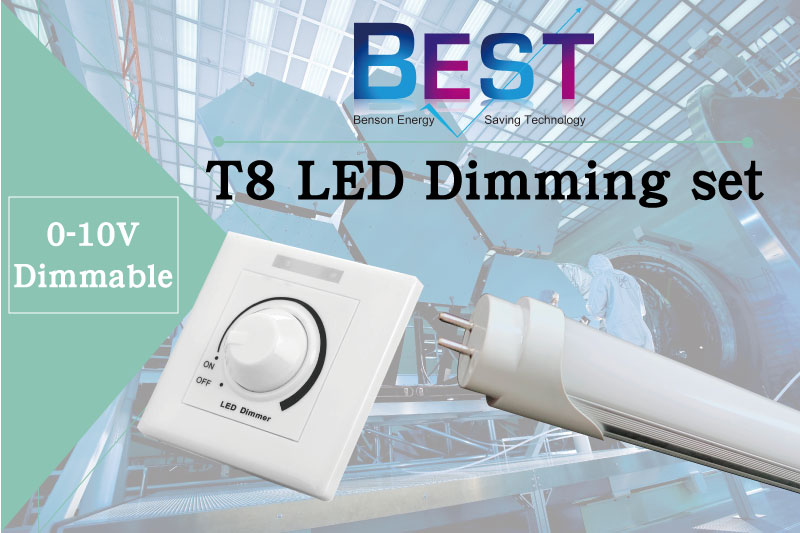

The BEST T8 LED dimming set

T8 LED tube + 0-10V LED driver + dimmer

The BEST dimming set design as the concept of circular economy, by controlling the brightness of LED tube to reduce energy computation. Benson Energy Saving Technology supply the T8 LED products featured as high quality, high brightness and longer lifetime.

Features:
Dimming method: 0-10V
Dimming LED tube: T8 (G13) LED tubes, 50,000hrs lifespan, CE & RoHs certification, flicker free.
Installation Luminaire: Can be installed in all luminaires for T8 (G13) fluorescent tubes.
Applications: small area, machines, working platform, other manual adjust brightness area

Dimming:
Dimmer adjust, switch on form 10% to 100% brightness from the left to the right.
Switch off the dimmer, the light will turn off.
Stable dimming quality, long-life, Energy-saving effectiveness, Lumen Maintenance ≧70% (IESNA LM-80 standard), High Quality, CE, RoHS certification.

Q1 What lumen output do you need?
Ans.
2000lm above: T8 2ft, T8 3ft
3500lm above: T8 4ft,
5000lm above: T8 5ft
※Lumen output can be customized.

Q2. How many LED tubes can be activated by ONE LED driver?
Ans.
T8 2ft 10W: 1~2pcs
T8 3ft 14W: 1~2pcs
T8 4ft 24W: 1~2pcs
T8 5ft 38W: 1~2pcs
※ Customized available.

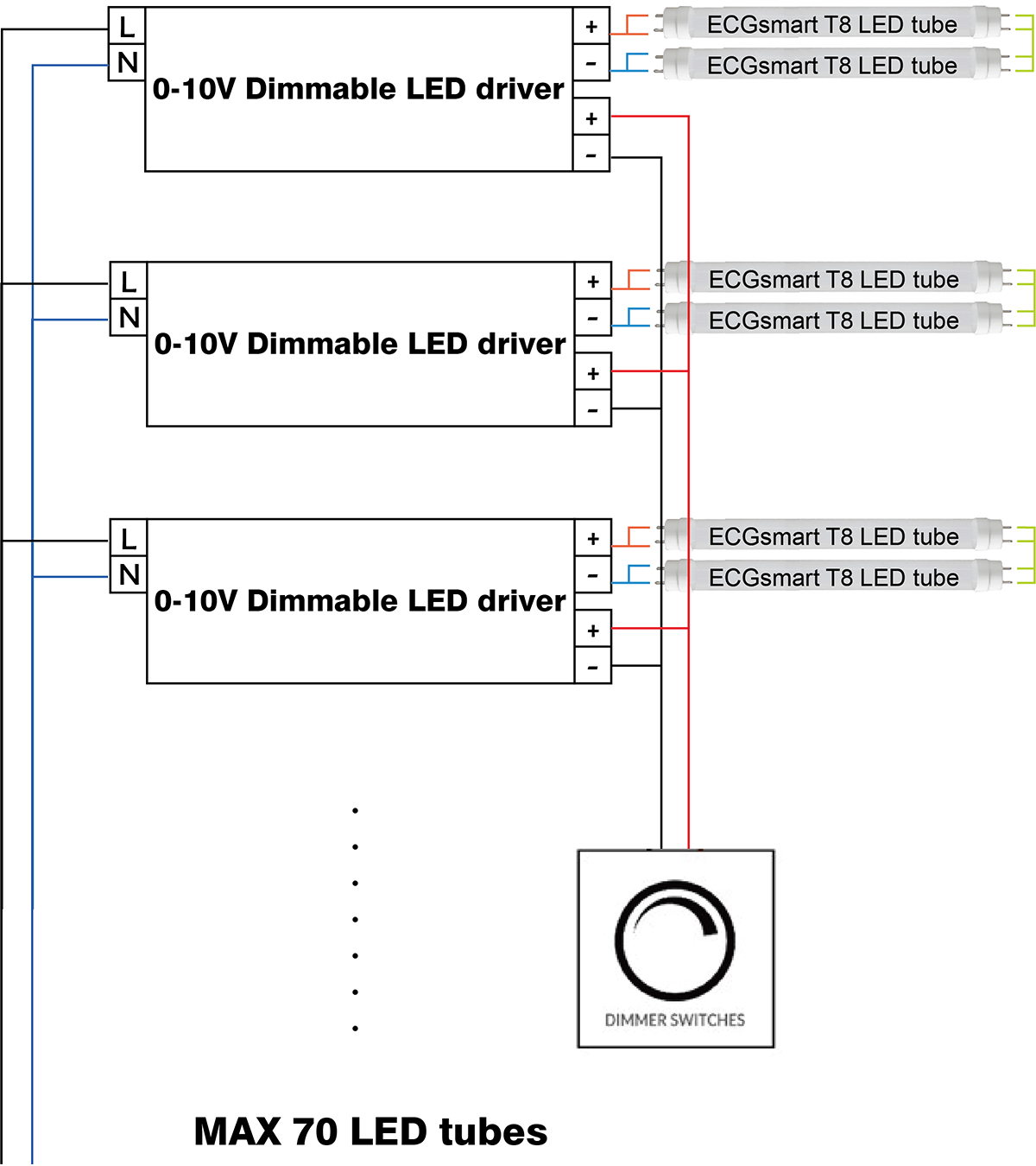

Q3. How many LED tubes can be controlled with ONE dimmer?

Ans. Max. 70 pcs of LED tubes.

Q4 Color Temperature?
Ans.
2700K is warmer and yellower, it is better for home, hotel, café or bar.
4000K is the popular color in European area, which you can feel warm and comfortable.
6000K is the cold color and looks like the sun, it is better for business office or other areas that for workers to improve focus and concentration.

Q5 Do you offer luminaire?
Ans. We can offer with or without luminaire as you request.

Other suggestions:
Basically, we pack our products without wiring service! If you need this service (will be charged additionally), please highlight in your inquiry, and inform us the length of wires you need.

Need more information, or samples orders service, please contact with us directly!
